• Anderson power connectors and power cables

300A~600A Industrial connector

Short Description:

Best selling heavy duty electrical  industrial 600A 1000v connector UL approved

>>Anen Industrial Round Connector



Anen Power Industrial Connector Series are specially formed, resilient strips of copper alloy which are silver or gold plated according to their application. By its constant spring pressure the connector maintains continuous contact with the contact surface, resulting in a low constant contact resistance.

Anen technology of the connector allows us to meet a very broad range of requirements and to find solutions to the most severe constraints, including electrical (up to several kA), thermal(up to 350 degree), and mechanical, with contact durability of up to 1 million mating cycles




Product Detail

Product Tags

Features:

• With bayonet locking

• Adopt specoal shrapnel

• Touch protected in unplugged condition

• Can be equipped with a mi-croswitch as locking status in-dication

• Clearly visible colour marking on the insulation.

Used in standby power units, test stands, switchgears, construction machinery as well as on- and off- shore applications with harsh environmental conditions.

300A~600A Industrial connector-2

With bayonet locking.

300A~600A Industrial connector-3

Adopt special shrapnel

300A~600A Industrial connector-4

Touch protected in unplugged condition

300A~600A Industrial connector-5

Clearly visible colour marking on the insulation

300A~600A Industrial connector-6

IP67 in mated condition

Technical Parameters:

Product model

IC300

IC600

Rated current (Amperes)

300A

600A

Rated voltage (Volts)

1000V

Contact Barrel Wire Size (AWG)

50~240mm2

Contact material Copper alloy plate with silver
Insulation material

 high temperature Thermoplastic

Flammability

UL94 V-0

LifeWithout load (Contact/Disconnect Cycles)

With Load (Hot Plug 250 Cycles&120V)

To 5,000

YES

average Contact Resistance(micro-ohms)

30μQ

Insulation Resistance

5000MQ

average. Connectiondisconnect(N)

200N

Environment Temperature (°C)

-20°C... + 120°C

Rated Impulse Voltage

6.6KV AC

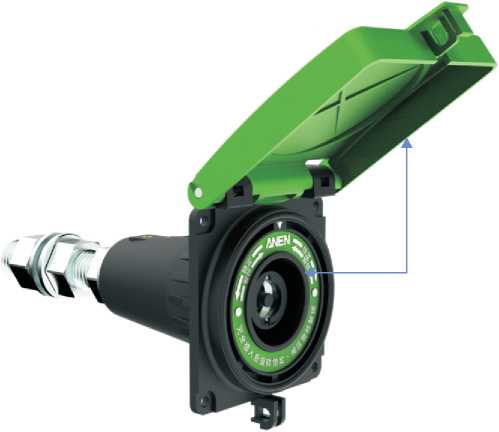

| Panel receptacle

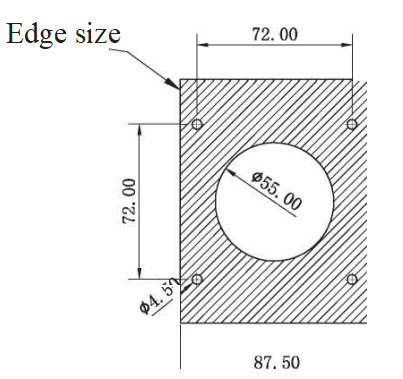

| Drilling plan

300A~600A Industrial connector-7
300A~600A Industrial connector-8
300A~600A Industrial connector-9

Plug P/N

A(mm) Size A(mm)

B(mm) Size B(mm)

C(mm) Size C(mm)

D(mm) Size D(mm)

Coloured marking

F.IC300B01-*A

73.3

59.5

132.8

M14

300A~600A Industrial connector-10

F.IC600B01-*A

94

75

169

M16

| Male cable connector

300A~600A Industrial connector-12
300A~600A Industrial connector-13

 Plug P/N

(mm2) Conductor cross section

φA(mm)

Dimension0(mm)

φB(mm)

Dimension0(mm)



Coloured marking

F.IC300M01-*A

50~70mm2

12.5

17.5

  300A~600A Industrial connector-10





F.IC300M02-*A

95~120mm2

16.0

21.0

F.IC600M01-*A

150mm2

19.0

25.0

F.IC600M02-*A

185mm2

21.0

27.0

F.IC600M03-*A

240mm2

24.0

30.0

| Female cable connector

300A~600A Industrial connector-14
300A~600A Industrial connector-15

Plug P/N

(mm2) Conductor cross section

φA (mm) Dimension0(mm)

φB (mm)

Dimension0(mm)



Coloured marking

F.IC300F01-*A

50~70mm2

12.5

17.5

300A~600A Industrial connector-10

F.IC300F02-*A

95~120mm2

16.0

21.0

F.IC600F01-*A

150mm2

19.0

25.0

F.IC600F02-*A

185mm2

21.0

27.0

F.IC600F03-*A

240mm2

24.0

30.0
