China Wholesale 2 Pin Power Connector Manufacturers – Module Power Connector DJL29 – ANEN Detail:

This series products of contact with gold or silver plated surface treatment; the plug pinjack socket device, the terminal is press-fit, welding and board ( PCB) three type.

This series products of each type of pin usually have three lengths can be selected, respectively is the long pin, standard type pin and short pin, to meet the needs of users of different needs; can also be based on user requirements custom. Note: Spring crown material selection is the high elasticity high strength beryllium bronze. With spring crown structure with smooth arc contact face jack, plug is soft, and can ensure the maximum contact surface. Thus the spring crown structure of the jack contact resistance is low ( low pressure ), the temperature rise is small, and seismic resistance, anti-vibration ability is very high, so the spring crown structure of the products with high.

Technical Parameters:

Rated voltage (Volts)

250V

Relative humidity

90%-95% (40±2°C )

Electrical characteristics

Below table

Life

800

Working Temperature (°C)

-55°C to+125°C

Vibration

10 ~ 2000Hz 147m/s2

Electrical characteristics:

Model

Contact size

Quantity

Hole no.

Rated current

(A)

Contact  resistance

(mΩ)

Withstand voltage

(VAC)

Insulation Resistance

(MΩ)

DJL-29

12#

8

1~4;26~29

35

<1

>2000

>3000

20#

21

5~25

5

<5

>1000

>3000

DJL-29A

16#

8

1~4;26~29

15

<3

>1500

>3000

20#

21

5~25

5

<5

>1000

>3000

DJL-29B

16#

4

1~4

15

<3

>1500

>3000

20#

21

5~25

5

<5

>1000

>3000

| Outline dimensions and mounting dimensions

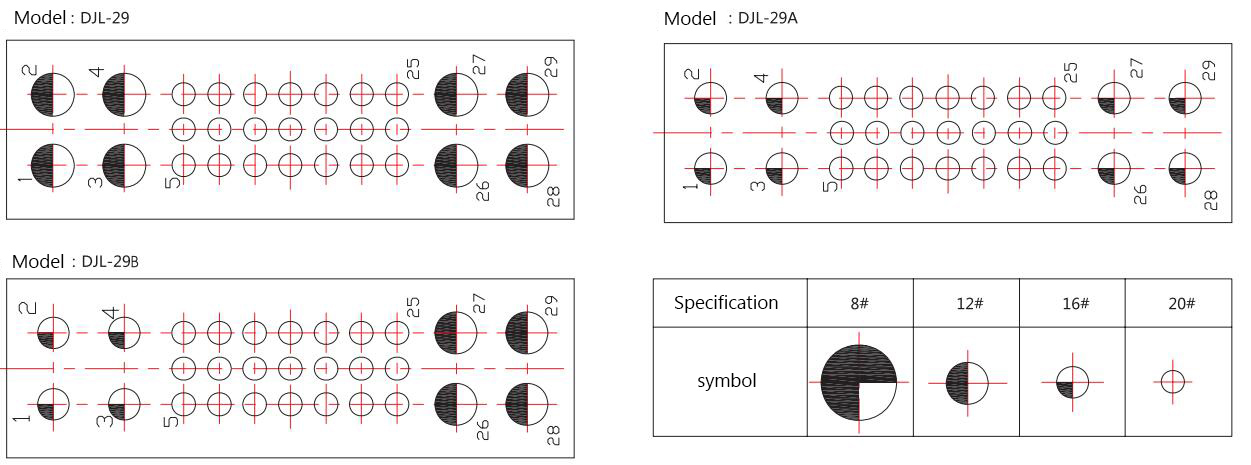

Contact type spectrum ( from the plug combination side)


Contact type spectrum ( from the plug combination side)

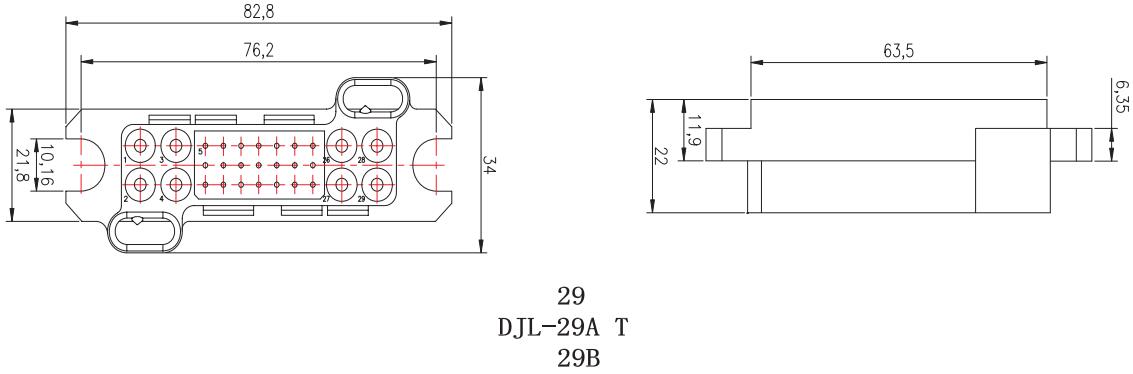

Outline and mounting dimensions


Outline and mounting dimensions

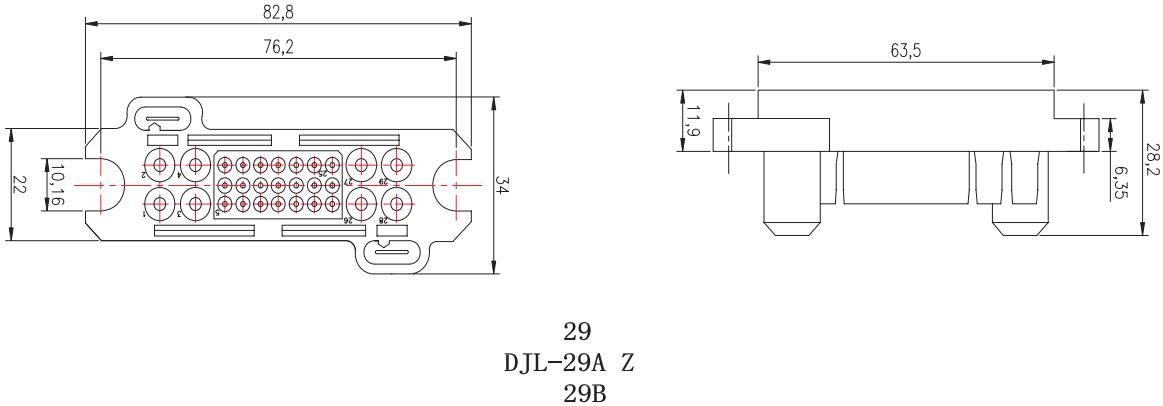

Outline and mounting dimensions b

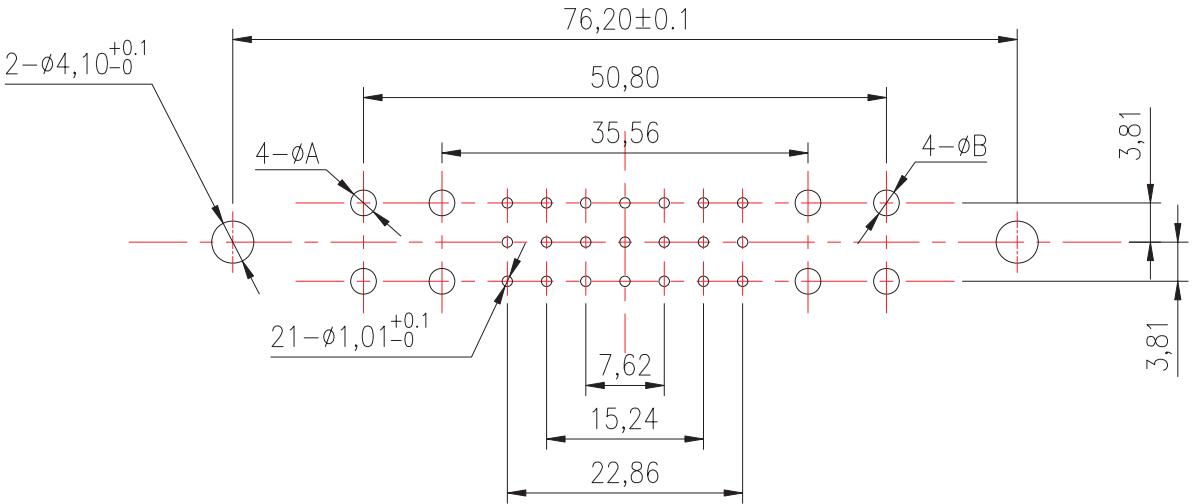

DJL29series installation hole size


Djl29series installation hole size

DJL29PCB mounting holes

Model

φA (mm)

φB(mm)

D 儿-29

2.50

2.50

DJL-29A

1.70

1.70

DJL-29B

1.70

2.50

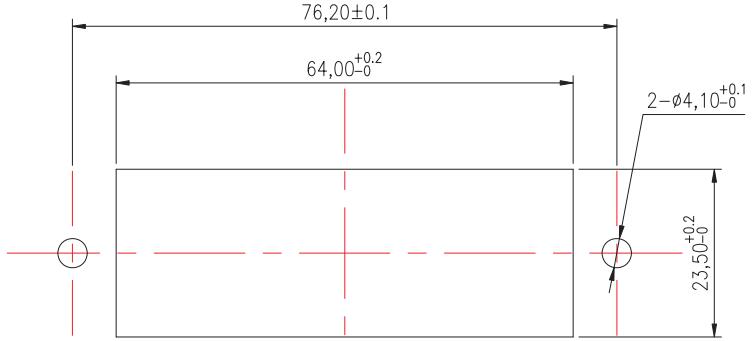

DJL29panel mounting hole size


DJL29panel mounting hole size


Product detail pictures:

China Wholesale 2 Pin Power Connector Manufacturers –  Module Power Connector DJL29 – ANEN detail pictures

China Wholesale 2 Pin Power Connector Manufacturers –  Module Power Connector DJL29 – ANEN detail pictures

China Wholesale 2 Pin Power Connector Manufacturers –  Module Power Connector DJL29 – ANEN detail pictures

China Wholesale 2 Pin Power Connector Manufacturers –  Module Power Connector DJL29 – ANEN detail pictures


Related Product Guide:
