Features:
• Double powerpoles, with handle design
• The terminals are made of high-purity electrolytic red copper
• The housing is made of PC high temperateure material
• Contact Barrel Wire Size 6-12AWG
• Rated current 50A
• Dielectric Withsanding Voltage 2200 Volts AC
• Temperature Range -20℃-105℃
• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities
Applications:
This series of products meets strict UL, CUL certification, which can be used safety in logistics communication. Power-driven tools, UPS systems Electric vehicles. medical equipment AC/DC power etc. of widely industry and the most area around world.
Technical Parameters:
| Rated current (Amperes) |
50A~75A |
| Voltage Rating AC/DC |
600V |
| Contact Barrel Wire Size (AWG) |
6-12AWG |
| Contact material |
copper、Plate with silver |
| Insulation material |
PC |
| Flammability |
UL94 V-0 |
| Life a. Without load (Contact/Disconnect Cycles) b. With Load (Hot Plug 250 Cycles&120V) |
To 10,000 50A |
| average Contact Resistance(micro-ohms) |
<180μΩ |
| Insulation Resistance |
5000MΩ |
| average. Connectiondisconnect(N) |
65N |
| Connector holding force (Ibf) |
250N Min |
| Temperature Range |
-20°C~105°C |
| Dielectric Withstanding Voltage |
2200 Volts AC |

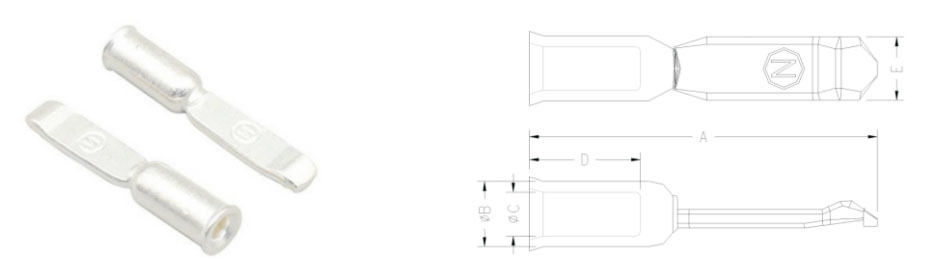

| SAS50 Housing
| Terminal
|
P/N |
-A- (mm) |
-B- (mm) |
-C- (mm) |
-D- (mm) |
-E- (mm) |
Wire(AWG) |
|
CTDC001B |
37.6 |
7.0 |
5.6 |
12.0 |
6.8 |
6 AWG |
|
CTDC002B |
37.6 |
7.0 |
4.7 |
12.0 |
6.8 |
8 AWG |
|
CTDC003B |
37.6 |
7.0 |
3.5 |
12.0 |
6.8 |
10&12 AWG |

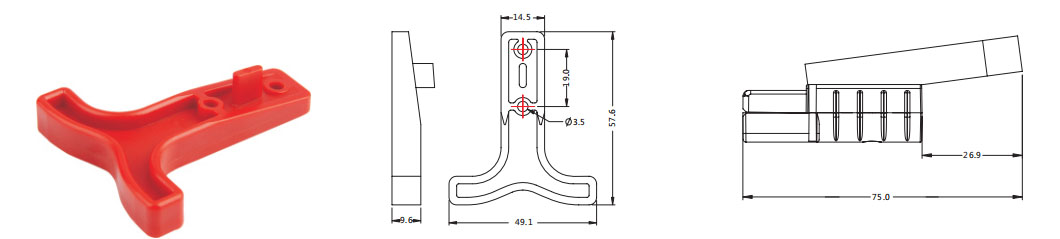

| Provective sleeve
|
Product name |
Part number |
Use level |
|
Handle |
PA112G1-X(2 8) |
1 PCS |
|
Screw |
GAA041701 |
2 PCS |

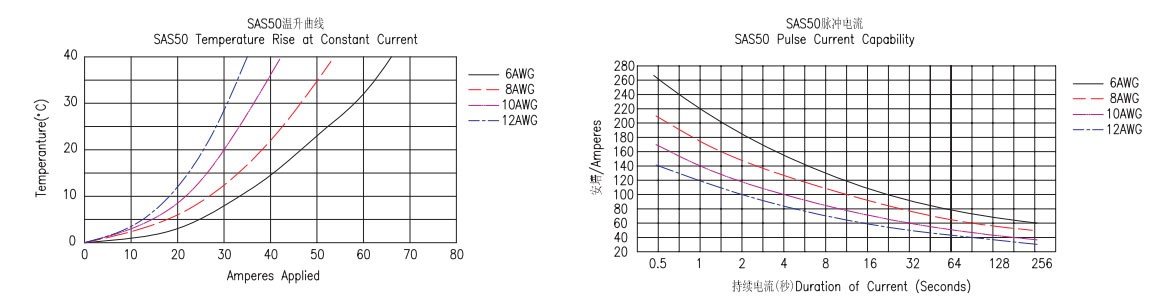

| Temperature rise charts
Product detail pictures:
