Features:

• A variety of colors design, material is UL 94V-0

• Contact Barrel Wire Size 6AWG/8AWG/10-12AWG

• A set of connector is made up of one housing and one terminal

• Voltage Rating AC/DC 600V

• Dielectric Withsanding Voltage 2200 Volts AC

• Insulation Resistance 5000MΩ

• Replace Anderson power products

• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities

Applications:

This series of products meets strict UL, CUL certification,which can be used safety in logistics communication. Power-driven tools, UPS systems Electric vehicles. medical equipment AC/DC power etc. of widely industry and the most area around world.

Technical Parameters:

Rated current (Amperes)

75A

Voltage Rating AC/DC

600V

Contact Barrel Wire Size (AWG)

06-12AWG

Contact material  Copper、Plate with silver
Insulation material

PC

Flammability

UL94 V-0

Lifea. Without load (Contact/Disconnect Cycles)

b. With Load (Hot Plug 250 Cycles& 120V)

To 10,000

50A

average Contact Resistance(micro-ohms)

<180μΩ

Insulation Resistance

5000MΩ

average. Connectiondisconnect(N)

30N

Connector holding force (Ibf)

250N Min

Temperature Range

-20℃-105℃

Dielectric Withstanding Voltage

2200 Volts AC

| Housing without lock

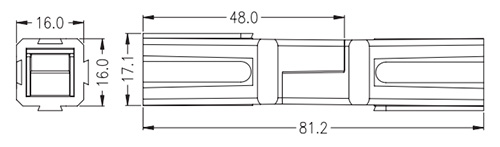

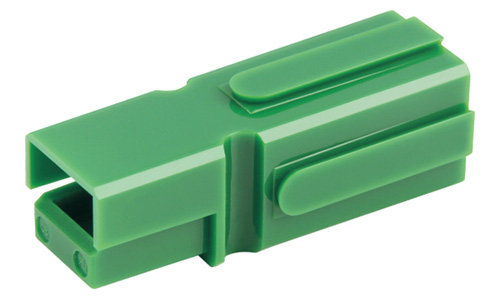

Combination of Power connector PA75 (5)
Combination of Power connector PA75-1

Part Number Housing Color
PA75B0-H Black
PA75B1-H Brown
PA75B2-H Red
PA75B3-H Orange
PA75B4-H Yellow
PA75B5-H Green
PA75B6-H Blue
PA75B7-H Purple
PA75B8-H Gray
PA75B9-H White

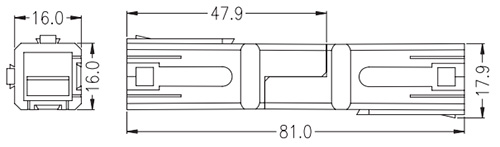

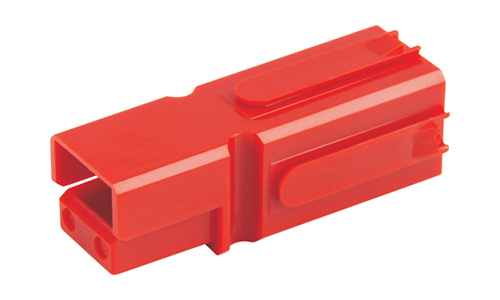

| Housing with lock

Combination of Power connector PA75 (6)
Combination of Power connector PA75-2

Part Number Housing Color
PA75B0-HL Black
PA75B1-HL Brown
PA75B2-HL Red
PA75B3-HL Orange
PA75B4-HL Yellow
PA75B5-HL Green
PA75B6-HL Blue
PA75B7-HL Purple
PA75B8-HL Gray
PA75B9-HL White

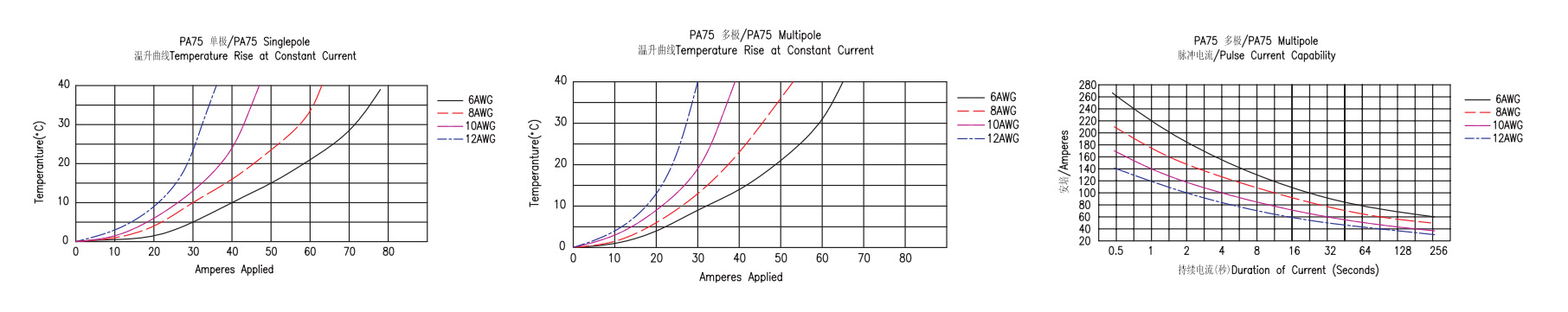

| Temperature rise charts


Combination of Power connector PA75-3

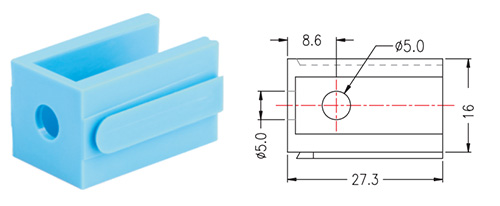

| Mounting wing

Combination of Power connector PA75-4

Part Number

Part Color

PA1399G16

Blue

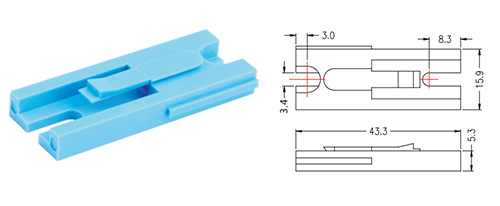

| Surface Mount Pad

Combination of Power connector PA75-5

Part Number

Part Color

PA75LOKSMTBLU

Blue

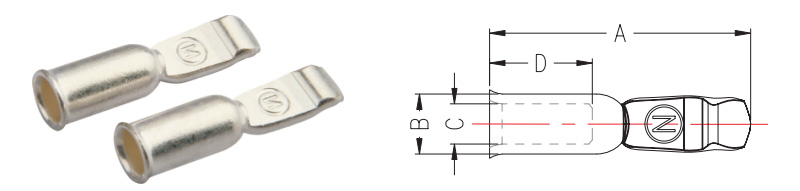

| Terminal

Combination of Power connector PA75-6

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

Wire

PA5900-T

30.5

7.0

5.6

12.0

6 AWG

PA5952-T

30.5

7.0

4.7

12.0

8 AWG

PA5915-T

28.9

7.0

3.5

12.0

10&12AWG

| PCB Terminal Contacts

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E- (mm)

-F- (mm)

50/75 BBS

70.5

17.0

7.0

#10-24 THD.

2.0

10.0

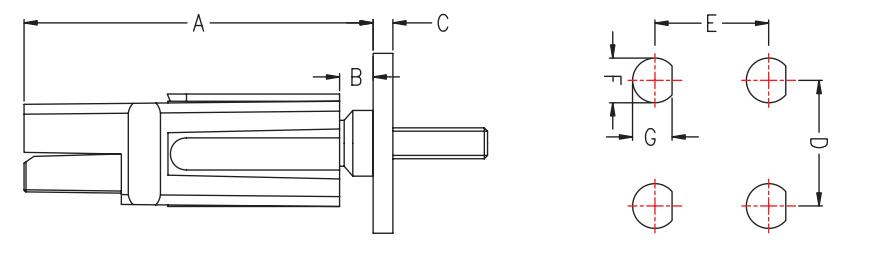

| Mounting Dimensions

Combination of Power connector PA75-8

Type

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E-(mm)

-F-(mm)

-G(mm)

50/75 BBS

53.3

5.1

3.0-12.7

19.1

17.3

6.8

6.2

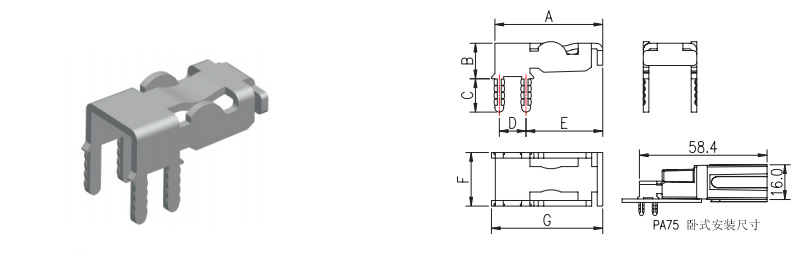

| Horizontal board terminal

Combination of Power connector PA75-9

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E- (mm)

-F- (mm)

-G- (mm)

PA5934-T

24.6

8.1

7.6

6.1

17.5

12.2

25.4

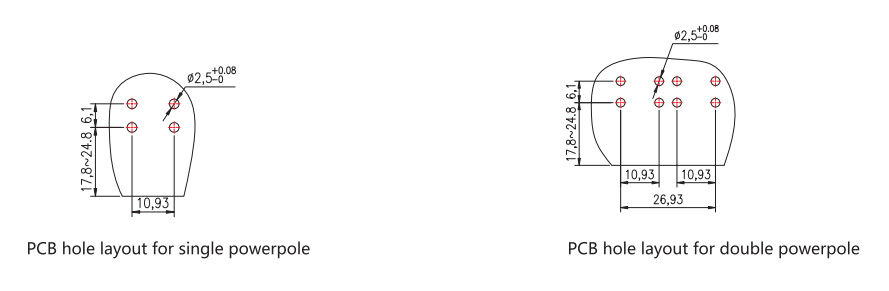

| PCB mounting dimensions

Combination of Power connector PA75-10

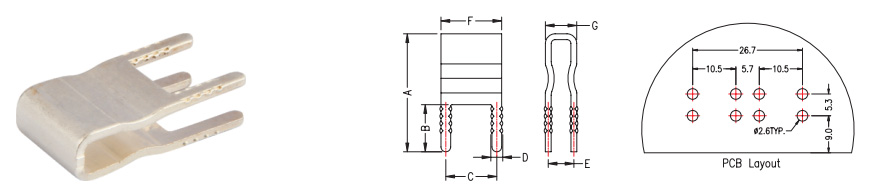

| Vertical board terminal

Combination of Power connector PA75-11

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E-(mm)

-F-(mm)

-G(mm)

PC5933-T

243

9.7

10.5

2.5

5.3

12.5

6.5

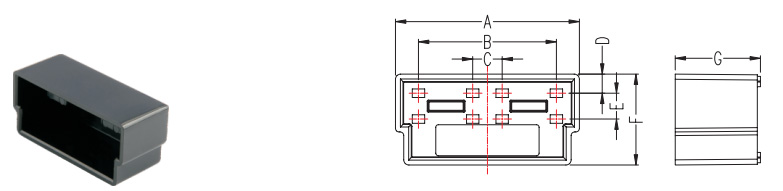

| Vertical board Housing

Combination of Power connector PA75-12

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E-(mm)

-F-(mm)

-G(mm)

PA-HSG-00

35.6

26.7

5.7

3.7

5.3

17.6

16.5
