China Wholesale Power Cable Connector Pricelist – Module Power Connector DJL07-19 – ANEN Detail:

Product model name:

DJL 07 – 19 G15 T J A W 01

NO.

Classification  feature

Content

Code

1

The lord called code

Power connector

DJL

2

Structure type number

Arabic number

07

3

Septal line



-

4

Core number

Arabic number

19

5

Contact piece mounted row form

Holes and filled

-

Installed 15 holes

G15

6

Plug and socket type

Plug

T

Socket

Z

7

Contact type

Pin

J

Jack

K

8

Pin arrangement

Length of A type

A

Length of B type

B

9

Termination form

Straight plate

B

Curved plate

W

10

With a row of form different loaded row of position

01 Holes

01

02 Holes

02

Technical Parameters:

Rated current (Amperes)

16#…20A

22#…3A

Rated voltage (Volts)

16#…550V

22# …333V

Insulation Resistance

5000MQ

Impact

Accelerated speed 294 m/s2

Wink snap≤1μs

Operating Temperature Range

-55°C~+125°C

average Contact Resistance

16# : 3 mΩ

22# : 12 mΩ

Withstanding Voltage

16# : 1500V

22#: ≥1000V(Normal)

Vibration

10Hz~ 2000Hz,

147m/s2

Mechanical life

1000 Times

Relative humidity

90%-95%

| Outline and mounting hole size

(Outline and mounting hole size (tolerances by ±0.5; unit: mm )

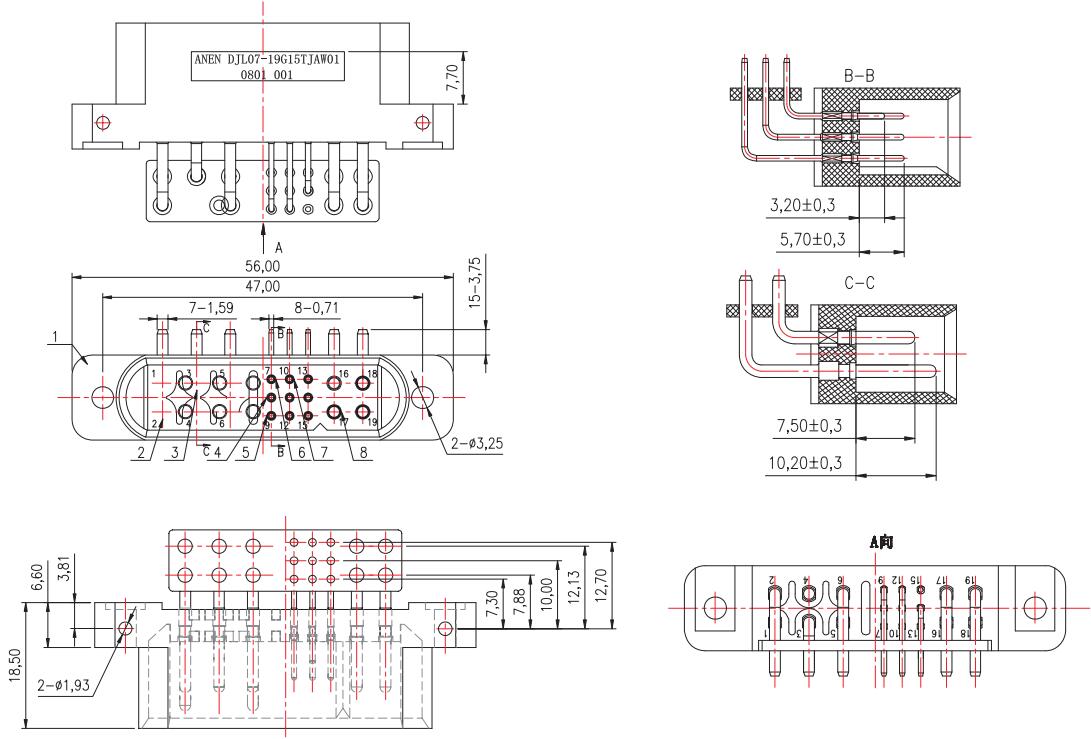

DJL07-19G15TJAW01 Plug size


DJL07-19G15TJAW01 Plug size

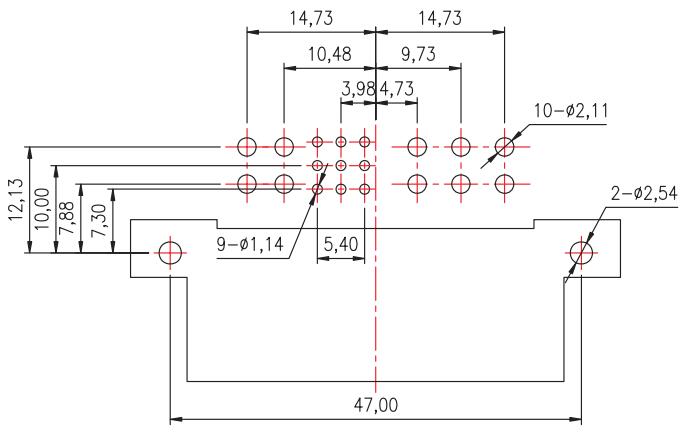

Recommended PCB hole size (tolerance ± 0.05)

9 locating plate 1
8 16#Bent Pin 2 Hole no.17,19
7 22# Bent Pin 1 Hole no.10(short)
6 22# Bent Pin 2 Hole no.7,13
5 22# Bent Pin 2 Hole no.9,12
4 22# Bent Pin 3 Hole no.8, 11, 14
3 16# Bent Pin 3 Hole no.3, 16 , 18
2 16# Bent Pin 2 Hole no.2,6(long)
1 Pin insulator 1
No. Name Usuage:pcs Remark

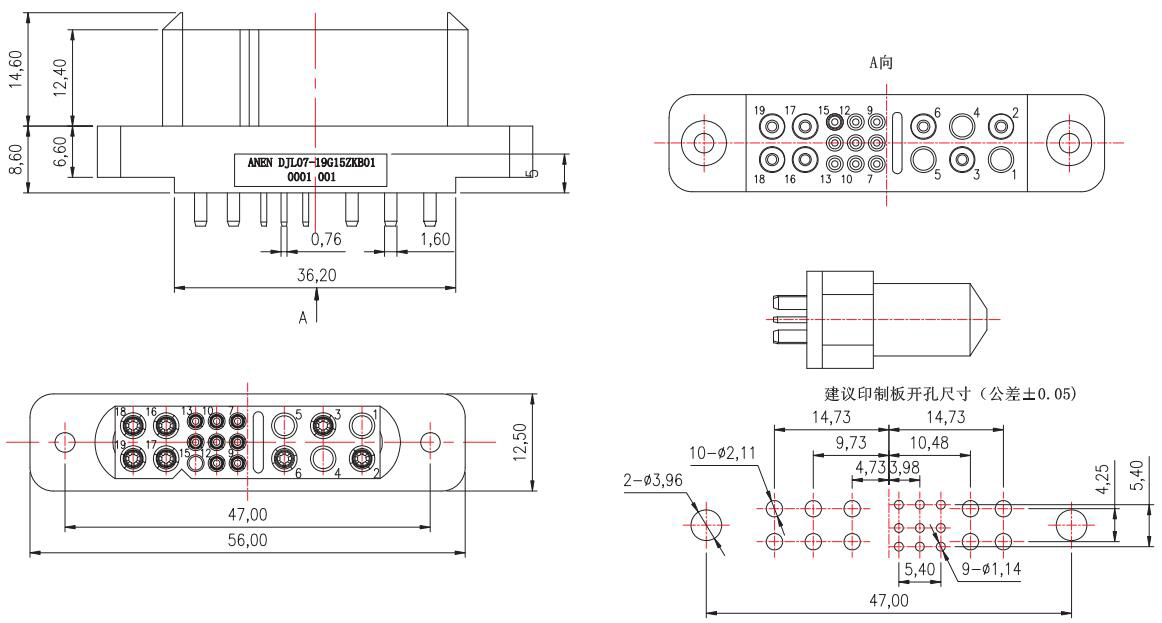

DJLO7-19G15ZKB01 Socket shape and size

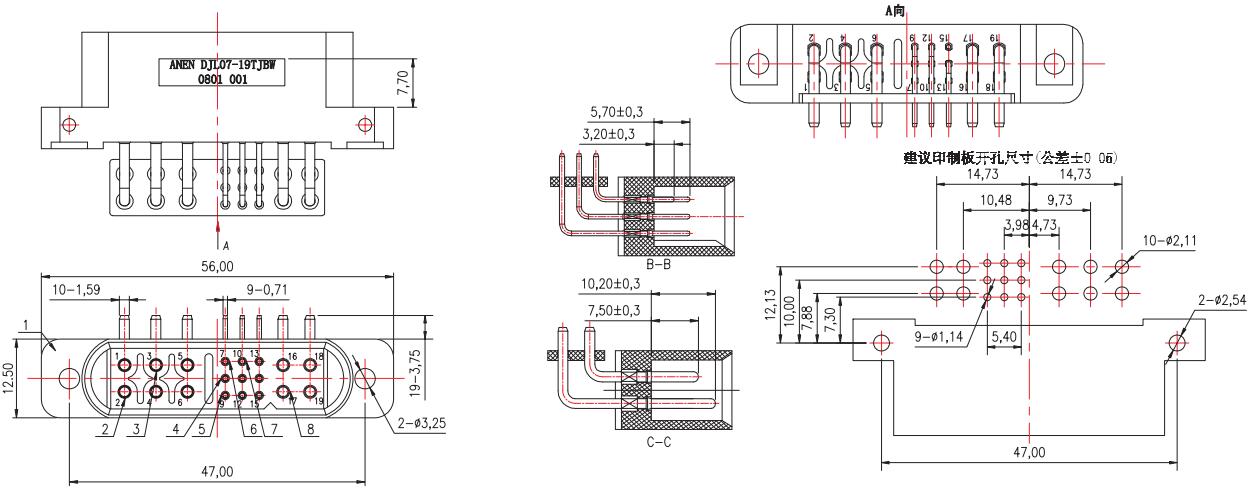

DJL07-19TJBW Plug shape and size

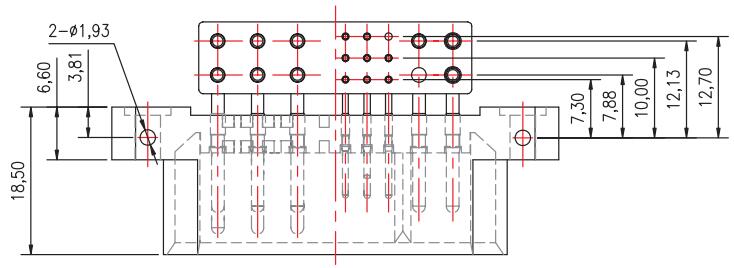

DJL07-19TJBW Plug shape and size b

3

22# Bent Pin

8

Hole no. 7-14

2

16# Bent Pin

7

Hole no. 2,3,6,16-19

1

Pin insulator

1



No.

Name

Usuage:pcs

Remark

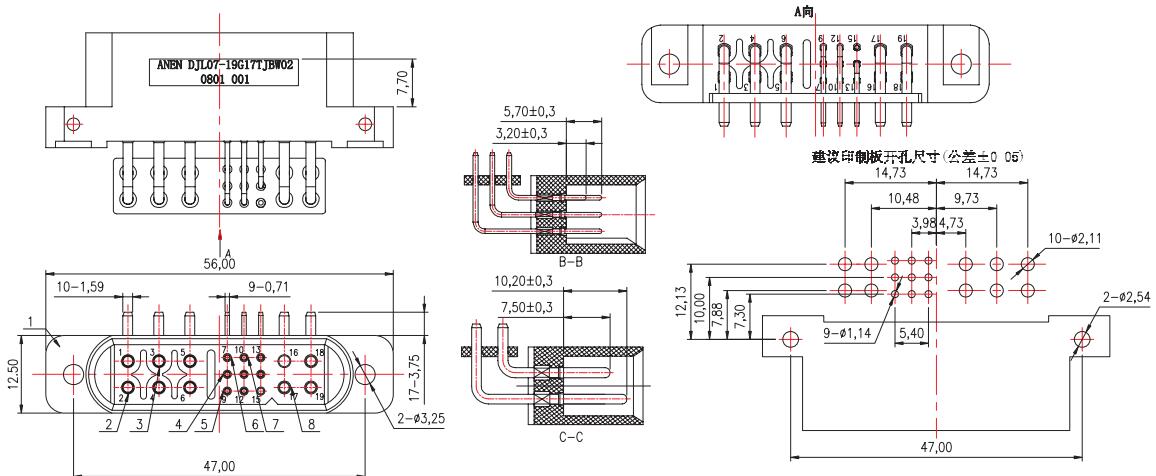

DJL07-19G17TJBW02 Plug size


DJL07-19G17TJBW02 Plug size

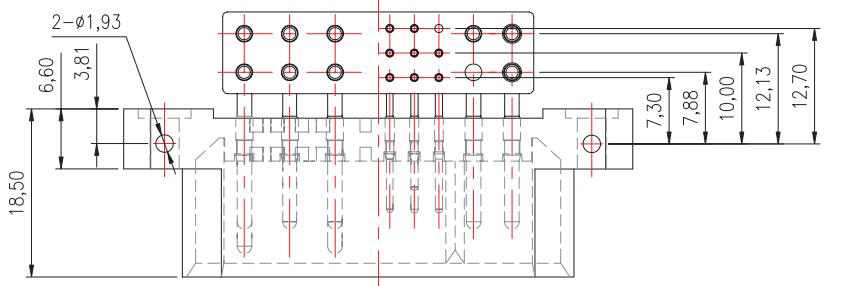

DJL07-19G17TJBW02 Plug size b

9 locating plate 1 —–
8 16# Bent Pin 2 Hole no.17, 19
7 22# Bent Pin 1 Hole no.10 (short)
6 22# Bent Pin 2 Hole no.7, 13
5 22# Bent Pin 2 Hole no.9 , 12
4 22# Bent Pin 3 Hole no.8 , 11, 14
3 16#  Bent Pin 4 Hole no.1, 3, 5 , 18
2 16#  Bent Pin 3 Hole no.2, 4, 6 (long)
1 Pin insulator 1
No. Name Usuage(pcs) Remar

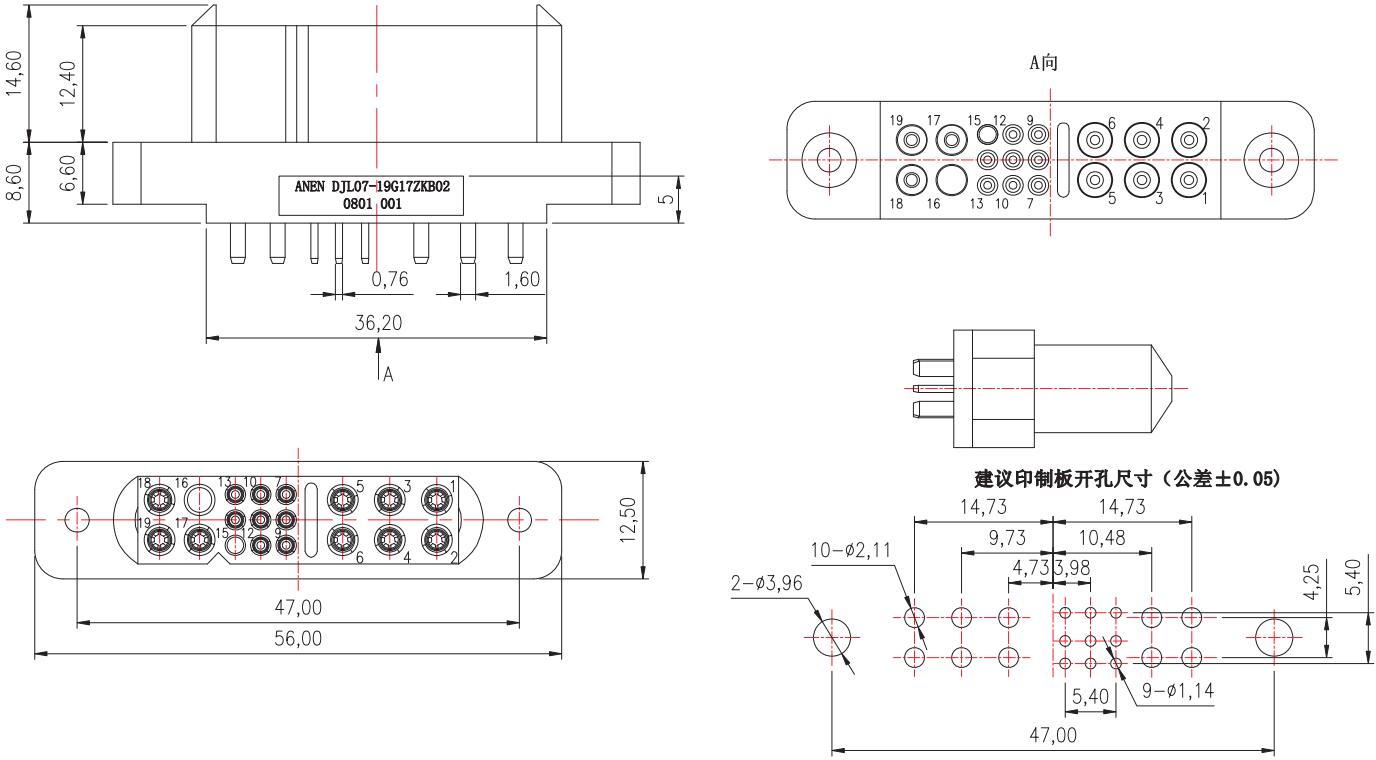

DJL07-19G17ZKB02 Socket shape and size


DJL07-19G17ZKB02 Socket shape and size

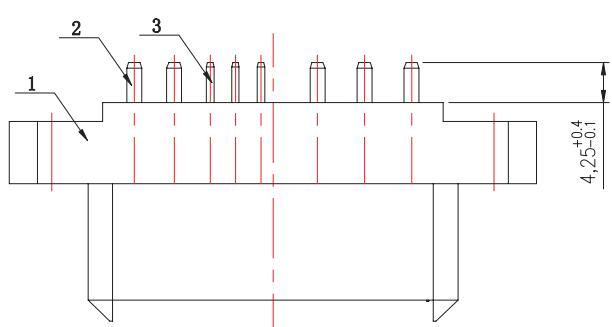

DJL07-19G17ZKB02 Socket shape and size b

3

22# Bent Pin

8

Hole no.7-14

2

16# Bent Pin

9

Hole no.1-,6,17,18

,19

1

Pin insulator

1



No.

Name

Usuage:pcs

Remark

DJL07-19TJBW Plug shape and size


DJL07-19TJBW Plug shape and size


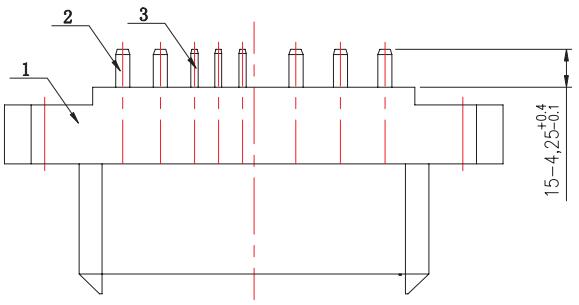

DJL07-19TJBW Plug shape and size b

9 locating plate 1
8 16# Bent Pin 2 Hole no.17, 19
7 22# Bent Pin 1 Hole no.10 (short)
6 22# Bent Pin 2 Hole no.7, 13
5 22# Bent Pin 3 Hole no.9, 12, 15
4 22# Bent Pin 3 Hole no.8, 11 , 14
3 16#  Bent Pin 5 Hole no.1, 3 , 5, 16, 18
2 16#  Bent Pin 3 Hole no.2,4 ,6 (long)
1 Pin insulator 1
No. Name Usuage(pcs) Remark

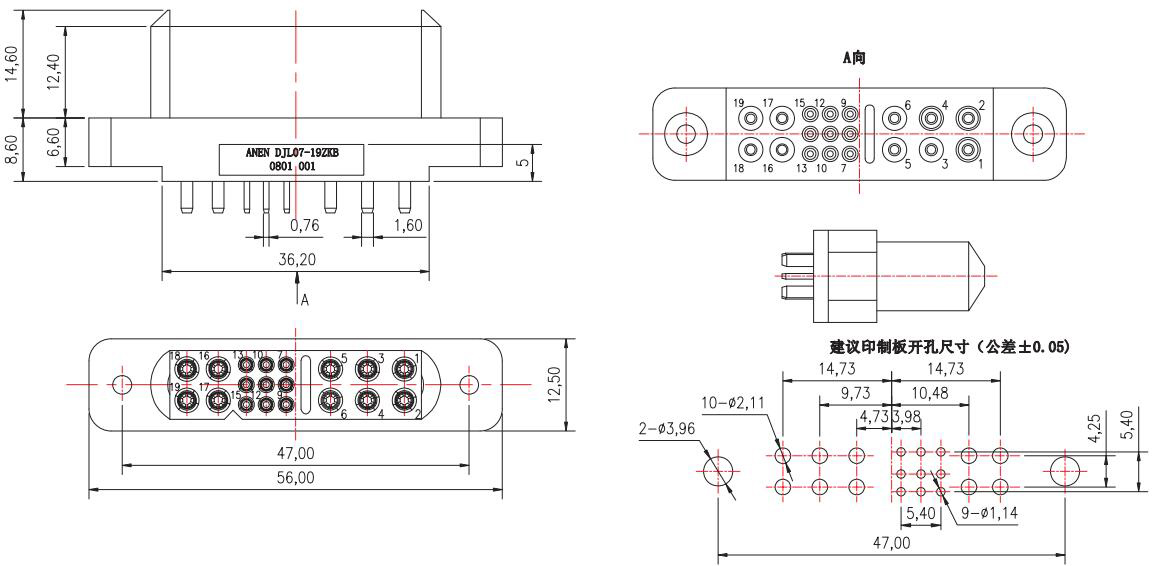

DJLO7-19ZKB Socket shape and size


DJLO7-19ZKB Socket shape and size

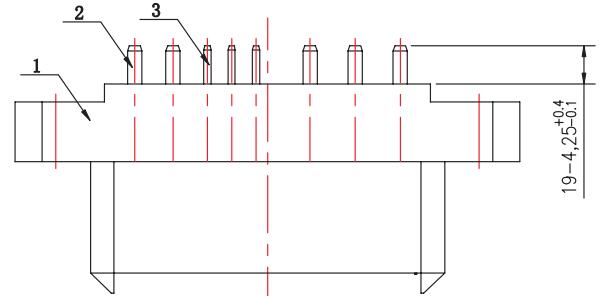

DJLO7-19ZKB Socket shape and size b

3

22# Bent Pin

9

Hole no. 7-15

2

16# Bent Pin

10

Hole no. 1-6, 16-19

1

Pin insulator

1



No.

Name

Usuage:pcs

Remark
