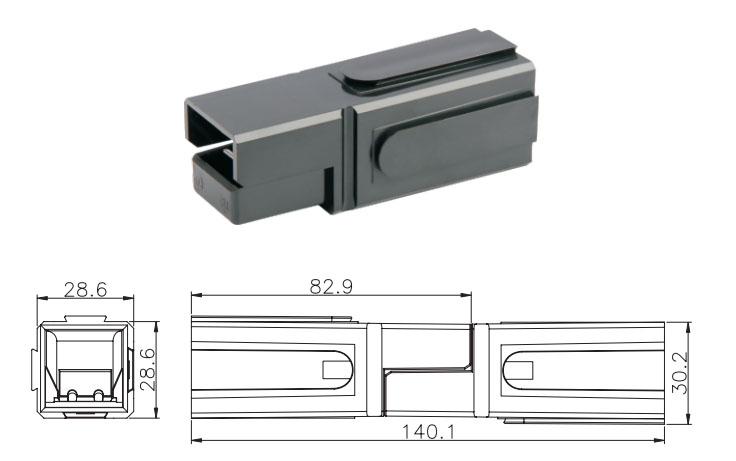

Combination of Power connector PA180
Features:
• A variety of colors design, material is UL 94V-0
• Contact Barrel Wire Size 1/0-4AWG
• A set of connector is made up of one housing and one terminal
• Voltage Rating AC/DC 600V• Rated current 180A
• Insulation material PC
• Temperature Range -20℃-105℃
• Replace Anderson power products
• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities.
Applications:
This series of products meets strict UL, CUL certification, which can be used safetly in logistics communication. Power-driven tools, UPS systems Electric vehicles. medical equipment AC/DC power etc. of widely industry and the most area around world.
Technical Parameters:
| Rated current (Amperes) |
180A |
| Voltage Rating AC/DC |
600V |
| Contact Barrel Wire Size (AWG) |
1/0 ~ 4 AWG |
| Contact material |
Copper、Plate with silver |
| Insulation material |
PC |
| Flammability |
UL94 V-0 |
| Life a. Without load (Contact/Disconnect Cycles) b. With Load (Hot Plug 250 Cycles& 120V) |
To 10,000 75A |
| average Contact Resistance(micro-ohms) |
<95 μΩ |
| Insulation Resistance |
5000MΩ |
| average. Cormectiondisconnect(N) |
70 N |
| Connector holding force (Ibf) |
500N Min |
| Temperature Range |
-20℃-105℃ |
| Dielectric Withstanding Voltage |
2200 Volts AC |
| Housing
| Part Number | Housing Color |
| PA180B0-H | Black |
| PA180B1-H | Brown |
| PA180B2-H | Red |
| PA180B3-H | Orange |
| PA180B4-H | Yellow |
| PA180B5-H | Green |
| PA180B6-H | Blue |
| PA180B7-H | Purple |
| PA180B8-H | Gray |
| PA180B9-H | White |
| Terminal
|
Part Number |
-A- (mm) |
-B- (mm) |
-C- (mm) |
-D- (mm) |
Wire |
Current |
|
PA1380-T |
56.1 |
25.7 |
11.2 |
13.0 |
1/0 AWG |
200A |
|
PA1382-T |
56.1 |
25.7 |
11.2 |
13.0 |
1/0 AWG |
175A |
|
PA1383-T |
56.1 |
25.7 |
8.9 |
13.0 |
2 AWG |
150A |
|
PA1384-T |
56.1 |
25.7 |
7.6 |
13.0 |
4 AWG |
120A |
| Temperature rise charts
| PCB Terminal Contacts
|
Part Number |
-A- (mm) |
-B- (mm) |
-C- (mm) |
-D- (mm) |
-E (mm) |
|
175/180 BBS |
106.5 |
23.7 |
13.0 |
1/4-20 THD. |
2.5 |
| Mounting Dimensions
|
Type |
-A- (mm) |
-B- (mm) |
-C- (mm) |
-D- (mm) |
-E-(mm) |
-F-(mm) |
-G(mnn) |
|
175/180 BBS |
88.9 |
10.2 |
5.0-19.0 |
26.8 |
26.8 |
9.5 |
8.5 |
