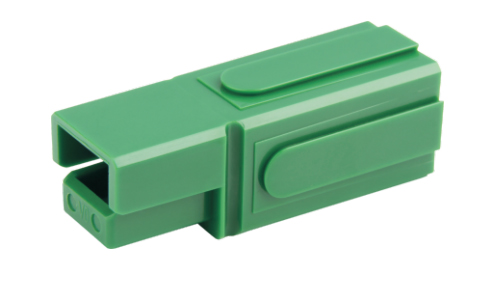

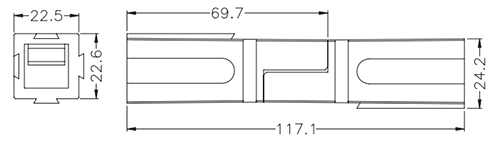

Combination of Power connector PA120

Short Description:

Features:

• Flat wiping contact system

Minimal contact resistance at high currentwiping action cleans contact surface during connection/disconnection.

• Molded-in dovetails

Secures individual connectors into “keyed” assemblies which prevents misconnection with similar configurations.

• Interchangeable genderless design Makes assembly easy and reduces stock.

Send email to us

Product Detail

Product Tags

Features:

• A variety of colors design, material is UL 94V-0

• Contact Barrel Wire Size 2-6AWG

• A set of connector is made up of one housing and one terminal

• Voltage Rating AC/DC 600V

• Rated current 120A

• Dielectric Withsanding Voltage 2200 Volts AC

• Temperature Range -20℃-105℃

• Replace Anderson power products

• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities

Applications:

This series of products meets strict UL, CUL certification, which can be used safety in logistics communication. Power-driven tools, UPS systems Electric vehicles. medical equipment AC/DC power etc. of widely industry and the most area around world.

Technical Parameters:

Rated current (Amperes)	120A
Voltage Rating AC/DC	600V
Contact Barrel Wire Size (AWG)	2~6AWG
Contact material	Copper、Plate with silver
Insulation material	PC
Flammability	UL94 V-0
Life a. Without load (Contact/Disconnect Cycles) b. With Load (Hot Plug 250 Cycles& 120V)	To 10,000 60A
average Contact Resistance(micro-ohms)	<140 μΩ
Insulation Resistance	5000MΩ
average. Connectiondisconnect(N)	50N
Connector holding force (Ibf)	450N Min
Temperature Range	-20°C~105°C
Dielectric Withstanding Voltage	2200 Volts AC

| Housing

Part Number	Housing Color
PA120B0-H	Black
PA120B1-H	Brown
PA120B2-H	Red
PA120B3-H	Orange
PA120B4-H	Yellow
PA120B5-H	Green
PA120B6-H	Blue
PA120B7-H	Purple
PA120B8-H	Gray
PA120B9-H	White
