Combination of Power connector PA75
Features:
• A variety of colors design, material is UL 94V-0
• Contact Barrel Wire Size 6AWG/8AWG/10-12AWG
• A set of connector is made up of one housing and one terminal
• Voltage Rating AC/DC 600V
• Dielectric Withsanding Voltage 2200 Volts AC
• Insulation Resistance 5000MΩ
• Replace Anderson power products
• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities
Applications:
This series of products meets strict UL, CUL certification,which can be used safety in logistics communication. Power-driven tools, UPS systems Electric vehicles. medical equipment AC/DC power etc. of widely industry and the most area around world.
Technical Parameters:
| Rated current (Amperes) |
75A |
| Voltage Rating AC/DC |
600V |
| Contact Barrel Wire Size (AWG) |
06-12AWG |
| Contact material | Copper、Plate with silver |
| Insulation material |
PC |
| Flammability |
UL94 V-0 |
| Lifea. Without load (Contact/Disconnect Cycles)
b. With Load (Hot Plug 250 Cycles& 120V) |
To 10,000 50A |
| average Contact Resistance(micro-ohms) |
<180μΩ |
| Insulation Resistance |
5000MΩ |
| average. Connectiondisconnect(N) |
30N |
| Connector holding force (Ibf) |
250N Min |
| Temperature Range |
-20℃-105℃ |
| Dielectric Withstanding Voltage |
2200 Volts AC |
| Housing without lock
| Part Number | Housing Color |
| PA75B0-H | Black |
| PA75B1-H | Brown |
| PA75B2-H | Red |
| PA75B3-H | Orange |
| PA75B4-H | Yellow |
| PA75B5-H | Green |
| PA75B6-H | Blue |
| PA75B7-H | Purple |
| PA75B8-H | Gray |
| PA75B9-H | White |
| Housing with lock
| Part Number | Housing Color |
| PA75B0-HL | Black |
| PA75B1-HL | Brown |
| PA75B2-HL | Red |
| PA75B3-HL | Orange |
| PA75B4-HL | Yellow |
| PA75B5-HL | Green |
| PA75B6-HL | Blue |
| PA75B7-HL | Purple |
| PA75B8-HL | Gray |
| PA75B9-HL | White |
| Temperature rise charts
| Mounting wing
|
Part Number |
Part Color |
|
PA1399G16 |
Blue |
| Surface Mount Pad
|
Part Number |
Part Color |
|
PA75LOKSMTBLU |
Blue |
| Terminal
|
Part Number |
-A- (mm) |
-B- (mm) |
-C- (mm) |
-D- (mm) |
Wire |
|
PA5900-T |
30.5 |
7.0 |
5.6 |
12.0 |
6 AWG |
|
PA5952-T |
30.5 |
7.0 |
4.7 |
12.0 |
8 AWG |
|
PA5915-T |
28.9 |
7.0 |
3.5 |
12.0 |
10&12AWG |

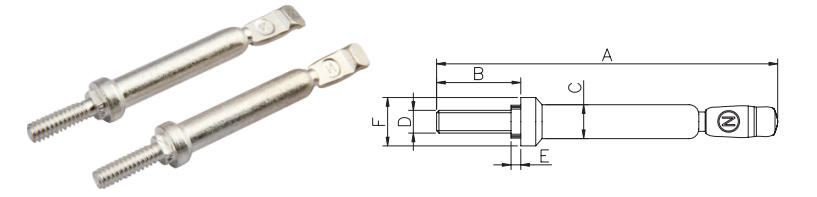

| PCB Terminal Contacts
| Part Number |
-A- (mm) |
-B- (mm) |
-C- (mm) |
-D- (mm) |
-E- (mm) |
-F- (mm) |
| 50/75 BBS |
70.5 |
17.0 |
7.0 |
#10-24 THD. |
2.0 |
10.0 |
| Mounting Dimensions
|
Type |
-A- (mm) |
-B- (mm) |
-C- (mm) |
-D- (mm) |
-E-(mm) |
-F-(mm) |
-G(mm) |
|
50/75 BBS |
53.3 |
5.1 |
3.0-12.7 |
19.1 |
17.3 |
6.8 |
6.2 |
| Horizontal board terminal
|
Part Number |
-A- (mm) |
-B- (mm) |
-C- (mm) |
-D- (mm) |
-E- (mm) |
-F- (mm) |
-G- (mm) |
|
PA5934-T |
24.6 |
8.1 |
7.6 |
6.1 |
17.5 |
12.2 |
25.4 |
| PCB mounting dimensions
| Vertical board terminal
|
Part Number |
-A- (mm) |
-B- (mm) |
-C- (mm) |
-D- (mm) |
-E-(mm) |
-F-(mm) |
-G(mm) |
|
PC5933-T |
243 |
9.7 |
10.5 |
2.5 |
5.3 |
12.5 |
6.5 |
| Vertical board Housing
|
Part Number |
-A- (mm) |
-B- (mm) |
-C- (mm) |
-D- (mm) |
-E-(mm) |
-F-(mm) |
-G(mm) |
|
PA-HSG-00 |
35.6 |
26.7 |
5.7 |
3.7 |
5.3 |
17.6 |
16.5 |
