Features:

• Multiple powerpoles, with sleeve and fixed groove design

• The terminals are made of high-purity electrolytic red copper

• The housing is made of PC high temperateure material, anti-gold finger/anti-test PIN/ anti-shock type, anti-misinsertion design

• One set is made of one housing and three terminals

• Contact Barrel Wire Size 10-14AWG

• Rated current 50A

• Temperature Range -20℃-105℃

• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities

Applications:

This series of products meets strict UL, CUL certification,which can be used safety in logistics communication. Power-driven tools, UPS systems Electric vehicles. medical equipment AC/DC power etc. of widely industry and the most area around world.

Technical Parameters:

Rated current (Amperes)

50A

Voltage Rating AC/DC

600V

Contact Barrel Wire Size (AWG)

12~14AWG

Contact material

Copper、Plate with Tin

Insulation material

PC

Flammability

UL94 V-0

Life
a. Without load (Contact/Disconnect Cycles)
b. With Load (Hot Plug 250 Cycles&120V)

To 10,000

20A

average Contact Resistance(micro-ohms)

<500μΩ

Insulation Resistance

1000MΩ

 average. Connectiondisconnect(N)

50N

Connector holding force (Ibf)

200N Min

Temperature Range

-20°C~105°C

Dielectric Withstanding Voltage

2200 Volts AC

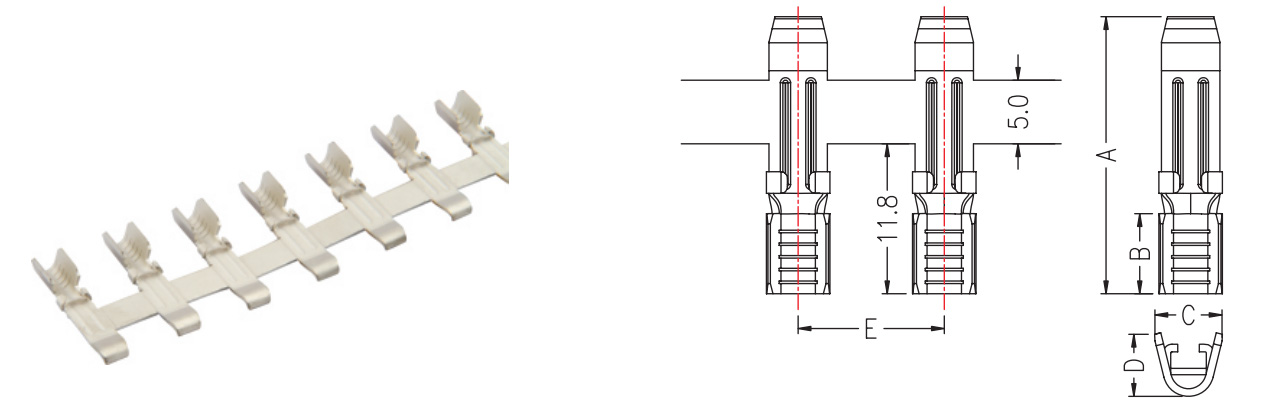

| SA30 Housing

| Terminal


Multipole Power Connectors SA30-4

Part number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E- (mm)

Wire

CTDBC001

21.7

6.3

5.0

4.6

11.5

12~14AWG

CTDBC002

21.7

6.5

5.6

5.4

11.5

10AWG

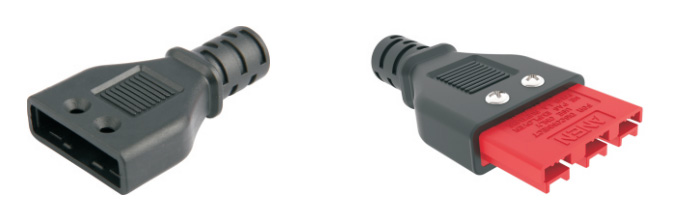

| Provective sleeve


Multipole Power Connectors SA30-5

 Product name

Part number

Use level

Provective sleeve

GG004

1 PCS

Screw

GAA3501001

2 PCS

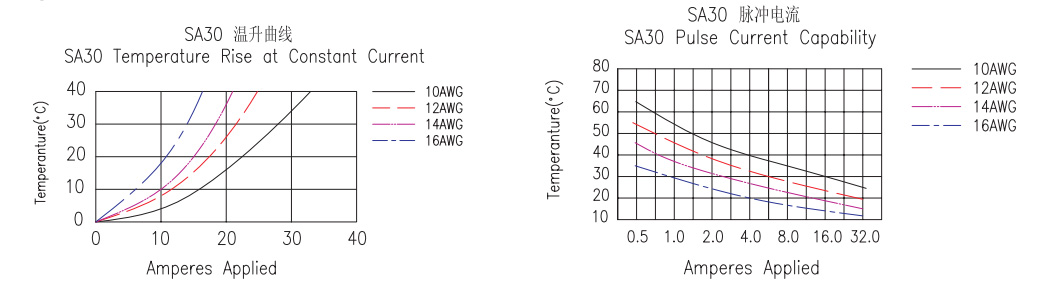

| Temperature rise charts

Multipole Power Connectors SA30-6

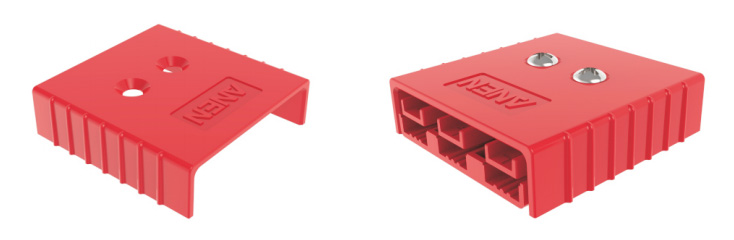

| Shell

Multipole Power Connectors SA30-7

Product name

Part number

Use level

Shell

GG024-X( 0 2 )

1 PCS

Screw

GAA3501001

2 PCS

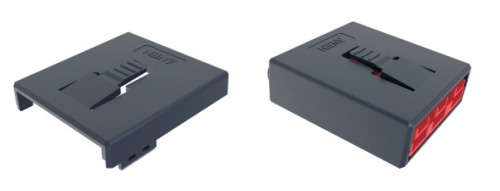

| 3P Housing(M)

Multipole Power Connectors SA30-8

Part number

Use level

GG027

2 PCS

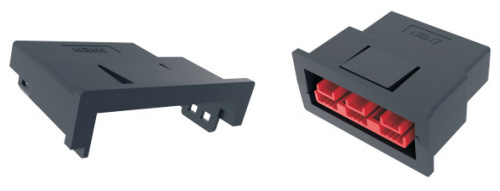

| 3P Housing(F)

Multipole Power Connectors SA30-9

Part number

Use level

GG026

2 PCS

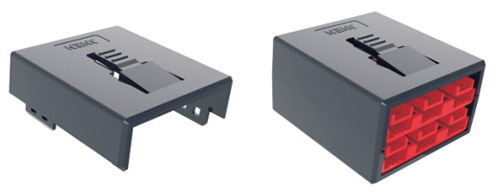

| 6P Housing(M)

Multipole Power Connectors SA30-10

Part number

Use level

GG029

2 PCS

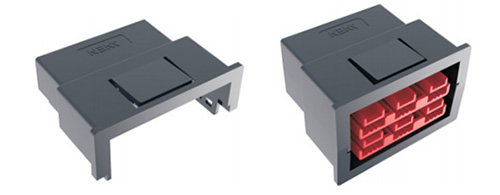

| 6P Housing(F)

Multipole Power Connectors SA30-11

Part number

Use level

GG028

2 PCS
