Multipole Power Connectors SAS50

Short Description:

Feature:

• Finqer proof

Helps prevent fingers (or probes) from accidentally touching live contacts

• Flat wiping contact system

Allow for minimal contact resistance at high current,wiping action cleans contact surface during disconnection

• Structured color-coded

Prevents accidental mating of components operating at different voltage levels

• Molded-in dovetails

Single or multiple contact are available

• Interchangeable genderless design

Makes assembly easy and reduces stock


Product Detail

Product Tags

Features:

• Double powerpoles, with handle design

• The terminals are made of high-purity electrolytic red copper

• The housing is made of PC high temperateure material

• Contact Barrel Wire Size 6-12AWG

• Rated current 50A

• Dielectric Withsanding Voltage 2200 Volts AC

• Temperature Range -20℃-105℃

• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities

Applications:

This series of products meets strict UL, CUL certification, which can be used safety in logistics communication. Power-driven tools, UPS systems Electric vehicles. medical equipment AC/DC power etc. of widely industry and the most area around world.

Technical Parameters:

Rated current (Amperes)

50A~75A

Voltage Rating AC/DC

600V

Contact Barrel Wire Size (AWG)

6-12AWG

Contact material

copper、Plate with silver

Insulation material

PC

Flammability

UL94 V-0

Life
a. Without load (Contact/Disconnect Cycles)
b. With Load (Hot Plug 250 Cycles&120V)

To 10,000

50A

average Contact Resistance(micro-ohms)

<180μΩ

Insulation Resistance

5000MΩ

average. Connectiondisconnect(N)

65N

Connector holding force (Ibf)

250N Min

Temperature Range

-20°C~105°C

Dielectric Withstanding Voltage

2200 Volts AC

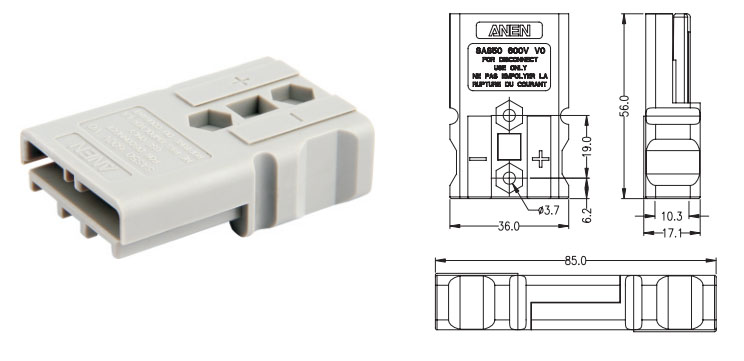

| SAS50 Housing

Multipole Power Connectors SAS50-3
Part Number              Housing Color
CFDS05000B Black
CFDS05001B Brown
CFDS05002B Red
CFDS05003B Orange
CFDS05004B Yellow
CFDS05005B Green
CFDS05006B Blue
CFDS05007B Purple
CFDS05008B Gray
CFDS05009B White





| Terminal

P/N

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E- (mm)

Wire(AWG)

CTDC001B

37.6

7.0

5.6

12.0

6.8

6 AWG

CTDC002B

37.6

7.0

4.7

12.0

6.8

8 AWG

CTDC003B

37.6

7.0

3.5

12.0

6.8

10&12 AWG

| Provective sleeve

 Product name

Part number

Use level

Handle

PA112G1-X(2 8)

1 PCS

Screw

GAA041701

2 PCS

| Temperature rise charts

Multipole Power Connectors SAS50-6
