Power Cord Connector Suppliers – Combination of Power connector PA350 – ANEN Detail:

Features:

• A variety of colors design, material is UL 94V-0

• Contact Barrel Wire Size 1/0-3/0AWG

• A set of connector is made up of one housing and one terminal

• Voltage Rating AC/DC 600V

• Rated current 350A

• Dielectric Withsanding Voltage 2200 Volts AC

• Temperature Range -20℃-105℃

• Replace Anderson power products

• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities.

Applications:

This series of products meets strict UL, CUL certification, which can be used safety in logistics communication. Power-driven tools, UPS systems Electric vehicles. medical equipment AC/DC power etc. of widely industry and the most area around world.

Technical Parameters:

 Rated current (Amperes)

350A

Voltage Rating AC/DC

600V

Contact Barrel Wire Size (AWG)

1/0AWG-3/0AWG

Contact material

Copper、Plate with silver

Insulation material

PC

Flammability

UL94 V-0

Life
a. Without load (Contact/Disconnect Cycles)
b. With Load (Hot Plug 250 Cycles& 120V)

To 10,000

100A

average Contact Resistance(micro-ohms)

<50μΩ

Insulation Resistance

5000MΩ

average. Connectiondisconnect(N)

110N

Connector holding force (Ibf)

500N Min

Temperature Range

-20°C~105°C

Dielectric Withstanding Voltage

2200 Volts AC

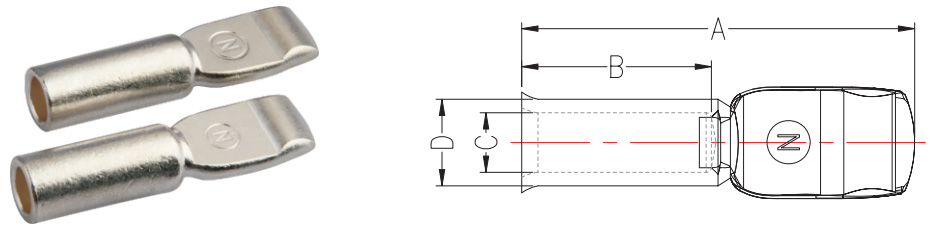

| Housing

| Terminal


Combination of Power connector PA350-02

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

Wire

PA917-T

73.5

25.7

11.1

16.0

l/0AWG

PA907-T

73.5

25.7

12.6

16.0

2/0AWG

PA916-T

73.5

31.4

16.0

19.0

3/0AWG

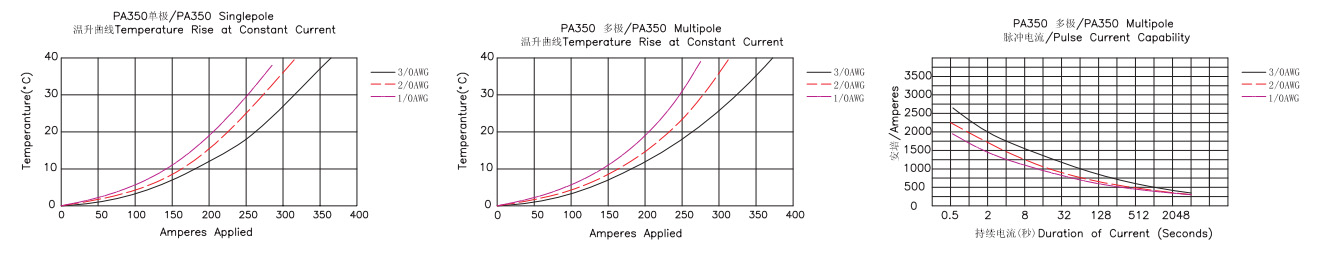

| Temperature rise charts


Combination of Power connector PA350-03

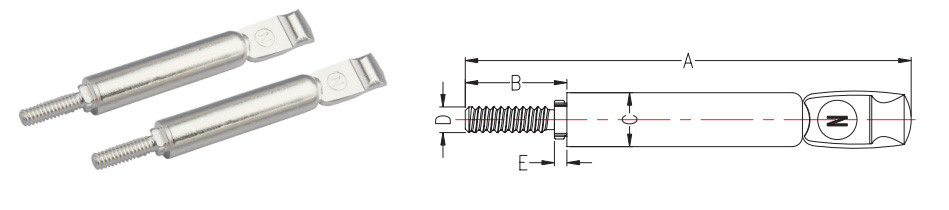

| PCB Terminal Contacts

Combination of Power connector PA350-04

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E (mm)

350 BBS

131.8

22.5

17.0

#3/8-19 THD.

3.0

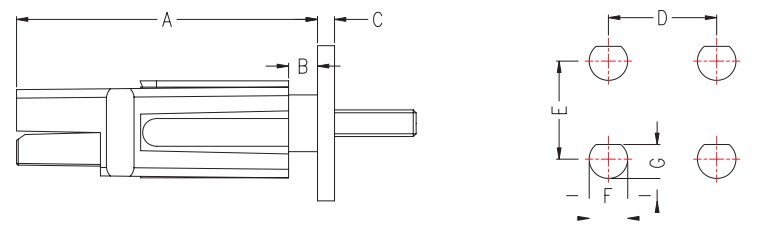

| Mounting Dimensions

Combination of Power connector PA350-05

Type

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E-(mm)

-F-(mm)

-G(mm)

350 BBS

113

5.0

3.0

34.9

33.8

13.4

11.8
