Power Plug Connector Quotes – Combination of Power connector PA180 – ANEN Detail:

Features:

• A variety of colors design, material is UL 94V-0

• Contact Barrel Wire Size 1/0-4AWG

• A set of connector is made up of one housing and one terminal

• Voltage Rating AC/DC 600V• Rated current 180A

• Insulation material PC

• Temperature Range -20℃-105℃

• Replace Anderson power products

• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities.

Applications:

This series of products meets strict UL, CUL certification, which can be used safetly in logistics communication. Power-driven tools, UPS systems Electric vehicles. medical equipment AC/DC power etc. of widely industry and the most area around world.

Technical Parameters:

Rated current (Amperes)

180A

Voltage Rating AC/DC

600V

Contact Barrel Wire Size (AWG)

1/0 ~ 4 AWG

Contact material

Copper、Plate with silver

Insulation material

PC

Flammability

UL94 V-0

Life
a. Without load (Contact/Disconnect Cycles)
b. With Load (Hot Plug 250 Cycles& 120V)

To 10,000

75A

average Contact Resistance(micro-ohms)

<95 μΩ

Insulation Resistance

5000MΩ

average. Cormectiondisconnect(N)

70 N

Connector holding force (Ibf)

500N Min

Temperature Range

-20℃-105℃

Dielectric Withstanding Voltage

2200 Volts AC

| Housing

| Terminal

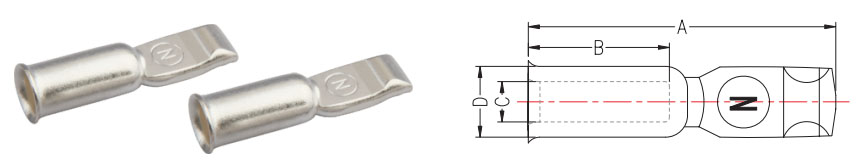

Combination of Power connector 180-2

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

 Wire

Current

PA1380-T

56.1

25.7

11.2

13.0

1/0 AWG

200A

PA1382-T

56.1

25.7

11.2

13.0

1/0 AWG

175A

PA1383-T

56.1

25.7

8.9

13.0

2 AWG

150A

PA1384-T

56.1

25.7

7.6

13.0

4 AWG

120A

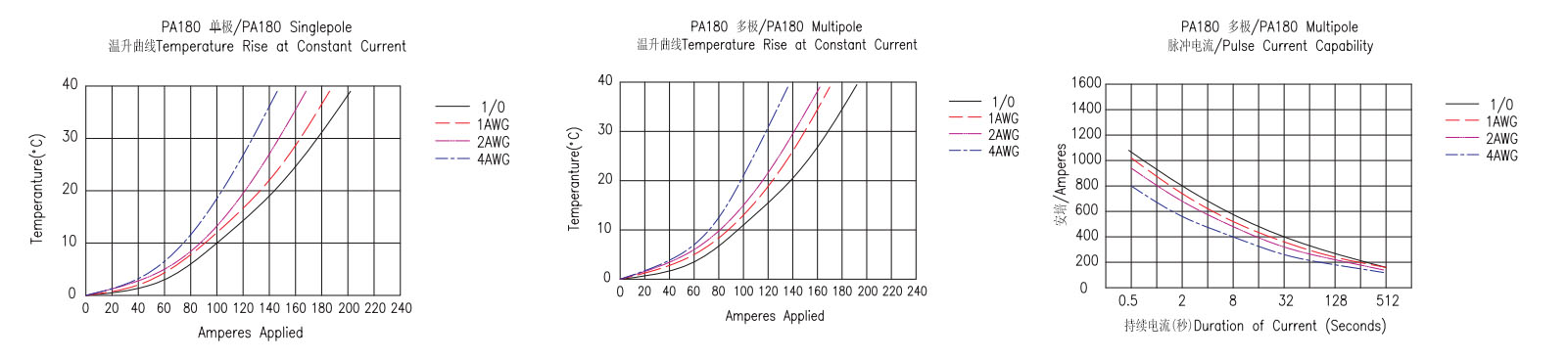

| Temperature rise charts


Combination of Power connector 180-3

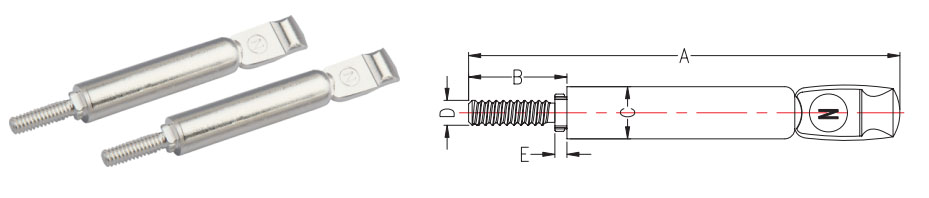

| PCB Terminal Contacts

Combination of Power connector 180-4

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E (mm)

175/180 BBS

106.5

23.7

13.0

1/4-20 THD.

2.5

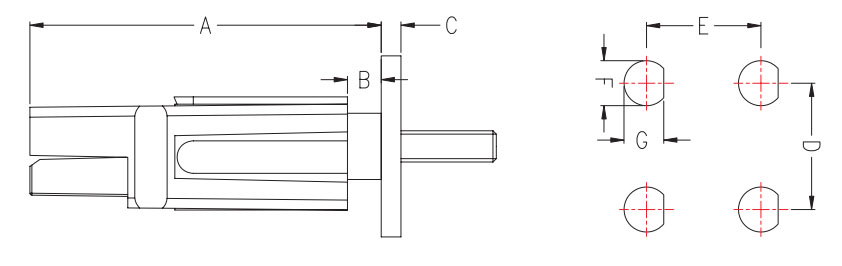

| Mounting Dimensions

Combination of Power connector 180-5

Type

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E-(mm)

-F-(mm)

-G(mnn)

175/180 BBS

88.9

10.2

5.0-19.0

26.8

26.8

9.5

8.5


Product detail pictures:

Power Plug Connector Quotes –  Combination of Power connector PA180 – ANEN detail pictures

Power Plug Connector Quotes –  Combination of Power connector PA180 – ANEN detail pictures

Power Plug Connector Quotes –  Combination of Power connector PA180 – ANEN detail pictures

Power Plug Connector Quotes –  Combination of Power connector PA180 – ANEN detail pictures
