Features:

• A variety of colors design, material is UL 94V-0

• Contact Barrel Wire Size 2-6AWG

• A set of connector is made up of one housing and one terminal

• Voltage Rating AC/DC 600V

• Rated current 120A

• Dielectric Withsanding Voltage 2200 Volts AC

• Temperature Range -20℃-105℃

• Replace Anderson power products

• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities

Applications:

This series of products meets strict UL, CUL certification, which can be used safety in logistics communication. Power-driven tools, UPS systems Electric vehicles. medical equipment AC/DC power etc. of widely industry and the most area around world.

Technical Parameters:

Rated current (Amperes)

120A

Voltage Rating AC/DC

600V

Contact Barrel Wire Size (AWG)

2~6AWG

Contact material

Copper、Plate with silver

Insulation material

PC

Flammability

UL94 V-0

Life
a. Without load (Contact/Disconnect Cycles)
b. With Load (Hot Plug 250 Cycles& 120V)

To 10,000

60A

average Contact Resistance(micro-ohms)

<140 μΩ

Insulation Resistance

5000MΩ

average. Connectiondisconnect(N)

50N

Connector holding force (Ibf)

450N Min

Temperature Range

-20°C~105°C

Dielectric Withstanding Voltage

2200 Volts AC

| Housing

| Terminal

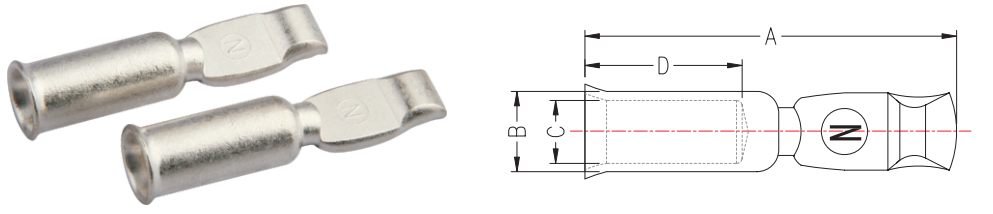

Combination of Power connector PA120-4

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

Wire

PA1319G2-T

52.0

11.1

8.7

22.0

2AWG

PA1319G4-T

52.0

11.1

7.5

22.0

4AWG

PA1319G6-T

52.0

11.1

5.6

22.0

6AWG

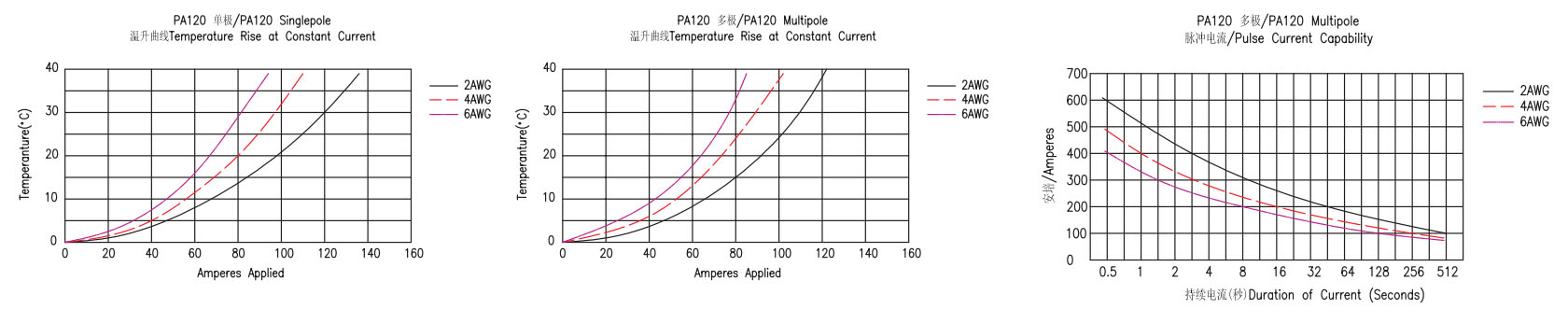

| Temperature rise charts

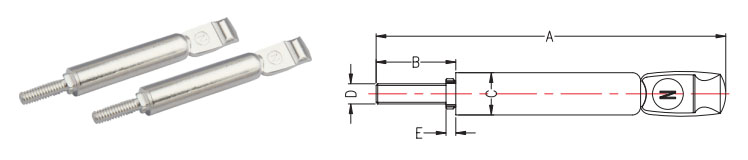

Combination of Power connector PA120-5

| PCB Terminal Contacts

Combination of Power connector PA120-6

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E (mm)

120 BBS

77.0

11.2

9.7

#10-24 THD.

2.5

| Mounting Dimensions

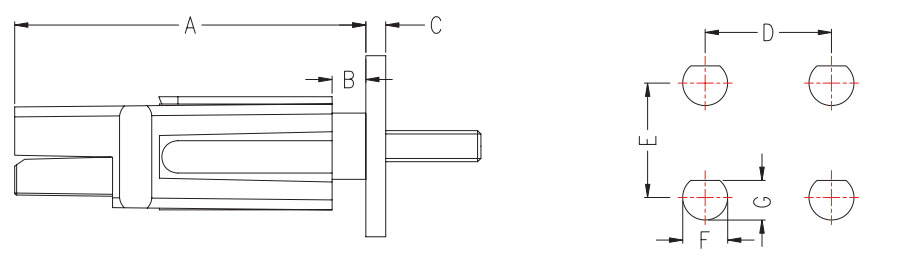

Combination of Power connector PA120-7

Type

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E-(mm)

-F-(mm)

-G(mm)

120 BBS

68.6

5.1

3.0-19.6

23.6

21.1

7.4

6.4
